Space engineering

Interface management

Foreword

This Standard is one of the series of ECSS Standards intended to be applied together for the management, engineering and product assurance in space projects and applications. ECSS is a cooperative effort of the European Space Agency, national space agencies and European industry associations for the purpose of developing and maintaining common standards. Requirements in this Standard are defined in terms of what shall be accomplished, rather than in terms of how to organize and perform the necessary work. This allows existing organizational structures and methods to be applied where they are effective, and for the structures and methods to evolve as necessary without rewriting the standards.

This Standard has been prepared by the ECSS E-ST-10-24C Working Group, reviewed by the ECSS Executive Secretariat and approved by the ECSS Technical Authority.

Disclaimer

ECSS does not provide any warranty whatsoever, whether expressed, implied, or statutory, including, but not limited to, any warranty of merchantability or fitness for a particular purpose or any warranty that the contents of the item are error-free. In no respect shall ECSS incur any liability for any damages, including, but not limited to, direct, indirect, special, or consequential damages arising out of, resulting from, or in any way connected to the use of this Standard, whether or not based upon warranty, business agreement, tort, or otherwise; whether or not injury was sustained by persons or property or otherwise; and whether or not loss was sustained from, or arose out of, the results of, the item, or any services that may be provided by ECSS.

Published by:     ESA Requirements and Standards Division    ESTEC, P.O. Box 299,    2200 AG Noordwijk    The NetherlandsCopyright:     2015© by the European Space Agency for the members of ECSS## Change log

ECSS-E-ST-10-24C 1 June 2015

First issue

Introduction

The management and control of interfaces is crucial to the success of space programmes and projects. Interface management is a process to assist in controlling product development when efforts are divided amongst different parties (e.g. agencies, contractors, geographically dispersed technical teams). Interface control is also needed to define, achieve and maintain compliance between products and actors that interoperate.

The application of this standard to a project is expected to bring the following benefits:

a consistent, coherent and commonly used approach – including documentation – throughout industry and across different projects;

effective and efficient product interface management;

minimize the risk of interface incompatibilities;

high confidence in achieving successful product operations for the intended use.

Scope

The objective of interface management is to achieve functional and physical compatibility amongst all interrelated items in the product tree. The goal of this standard is to define a common and systematic process to meet the objective.

This standard describes a standard process and methodology for interface management throughout the life cycle, in terms of identification, requirements specification, definition, approval and control, implementation, verification and validation of interfaces, within a space programme or project and in accordance with the other relevant ECSS standards.

In line with the definition of the Space System breakdown in Figure 2-1 of ECSS-S-ST-00-01, this standard is applicable to the following interfaces, where a contractual relationship exist among parties:

within the Space Segment

within the Ground Segment

between the Space Segment and the Ground Segment

between Space Segment and Launch Segment only for ICD aspects in conformance to the launcher user manual.

This standard does not ensure that all the specificities of interfaces within the Launch Segment are covered.

This standard is applicable to development of products at all different levels in the product tree. It is applicable to both the customer and the supplier of the product during all project phases (0 to F) and follows the generic ECSS customer/supplier pattern.

This standard may be tailored for the specific characteristics and constrains of a space project in conformance with ECSS-S-ST-00.

Normative references

The following normative documents contain provisions which, through reference in this text, constitute provisions of this ECSS Standard. For dated references, subsequent amendments to, or revision of any of these publications do not apply. However, parties to agreements based on this ECSS Standard are encouraged to investigate the possibility of applying the more recent editions of the normative documents indicated below. For undated references, the latest edition of the publication referred to applies.

ECSS-S-ST-00-01	ECSS - Glossary of terms
ECSS-E-ST-10	Space engineering - System engineering general requirements
ECSS-E-ST-10-02	Space engineering - Verification
ECSS-E-ST-10-06	Space engineering - Technical requirements specification
ECSS-M-ST-10	Space project management - Project planning and implementation
ECSS-M-ST-40	Space project management - Configuration and information management
ECSS-Q-ST-10-09	Space product assurance - Nonconformance control system

Terms, definitions and abbreviated terms

Terms from other standards

For the purpose of this Standard, the terms and definitions from ECSS-S-ST-00-01 apply, in particular for the following terms:
approval
baseline
configuration baseline
customer
interface
supplier
For the purpose of this Standard, the following term and definition from ECSS-E-ST-10-06 applies:
verification requirements
For the purpose of this Standard, the following terms and definitions from ECSS-M-ST-40 apply:
change request
change proposal

Terms specific to the present standard

controlled ICD
ICD formally issued subject to configuration control process

external interface
interface between items under different programme responsibilities

frozen ICD
ICD formally issued subject to configuration control process and signed by interface responsible and all the involved actors

• 1    A “frozen” ICD reflects the design baseline that is considered, for the interface related aspects, to be final and complete allowing start of manufacturing, integration, implementation and testing activities.
• 2    Change of a “frozen” ICD can occur but it usually implies a major cost or schedule impact.
  interface actor
  <CONTEXT:role> responsible for the design, development and verification of one interface end

The interface actors are all parties involved in the interface ends definition, design, development.

interface control document (ICD)
document defining the design of the interface(s)

interface definition document (IDD)
document defining the design of one interface end

interface end
one side of an interface

An interface end is the point of interaction of one of the elements of an interface.

interface identification document
document defining the index of all identified interfaces

interface plane
plane that distinguishes the two interface ends that interface with each other

interface requirement document (IRD)
document defining the requirements for an interface or a collection of interfaces.

interface responsible
<CONTEXT:role> responsible for the requirement specification, definition, development and verification of the interface

The interface responsible is the customer or his delegate, as an example for space segment to launch segment interface, it is the entity procuring both or its delegates.

internal interface
interface between items within the same programme responsibility

preliminary ICD
draft ICD circulated and iterated during interface definition phase before issuing a controlled ICD

Abbreviated terms

For the purpose of this Standard, the abbreviated terms from ECSS-S-ST-00-01 and the following apply:

Abbreviation	Meaning
CCSDS	Consultative Committee for Space Data Systems
CR	change request
CP	change proposal
ECSS	European Cooperation for Space Standardization
ICD	interface control document
IDD	interface definition document
IID	interface identification document
IRD	interface requirements document
OTS	off-the-shelf

Nomenclature

The following nomenclature applies throughout this document:

The word “shall” is used in this Standard to express requirements. All the requirements are expressed with the word “shall”.
The word “should” is used in this Standard to express recommendations. All the recommendations are expressed with the word “should”.

It is expected that, during tailoring, recommendations in this document are either converted into requirements or tailored out.

The words “may” and “need not” are used in this Standard to express positive and negative permissions, respectively. All the positive permissions are expressed with the word “may”. All the negative permissions are expressed with the words “need not”.
The word “can” is used in this Standard to express capabilities or possibilities, and therefore, if not accompanied by one of the previous words, it implies descriptive text.

In ECSS “may” and “can” have completely different meanings: “may” is normative (permission), and “can” is descriptive.

The present and past tenses are used in this Standard to express statements of fact, and therefore they imply descriptive text.

Principles

Type of interfaces

In a Space System there can be three major types of interfaces.

interfaces within the Space Segment, Ground Segment or Launch Segment.

interfaces between the different Segments of the Space System.

interfaces between the Support Segment and the Space Segment, Ground Segment or Launch Segment.

Refer to Figure 2-1 of ECSS-S-ST-00-01 for details on Space System breakdown.

In addition, a distinction can be made between internal and external interfaces.

The notion of internal or external depends on the position and role of an actor in the customer supplier chain.

An internal interface is an interface under the control of a given actor.

An external interface is an interface outside the control of a given actor.

For example, an interface between two suppliers of the same customer is considered external by the suppliers and internal by the customer.

Interface management process

General description

The interface management process is applied at all levels of the supplier/customer chain.

The standard describes the process at one level, between one customer and its lower tier suppliers.

The customer or his delegate is responsible for the definition, development and verification of the interface.

In addition to the interface responsible, the interface actors are all the parties involved in the interface end definition, design, development.

This process can impact the similar activities done at higher or lower levels.

As per ECSS-S-ST-00-01, the term “product” is used in the standard as a generic term which defines any component, equipment or element.

Annex E provides a non-exhaustive list of interface data, that can be used as a basis for interface specification, definition and control.

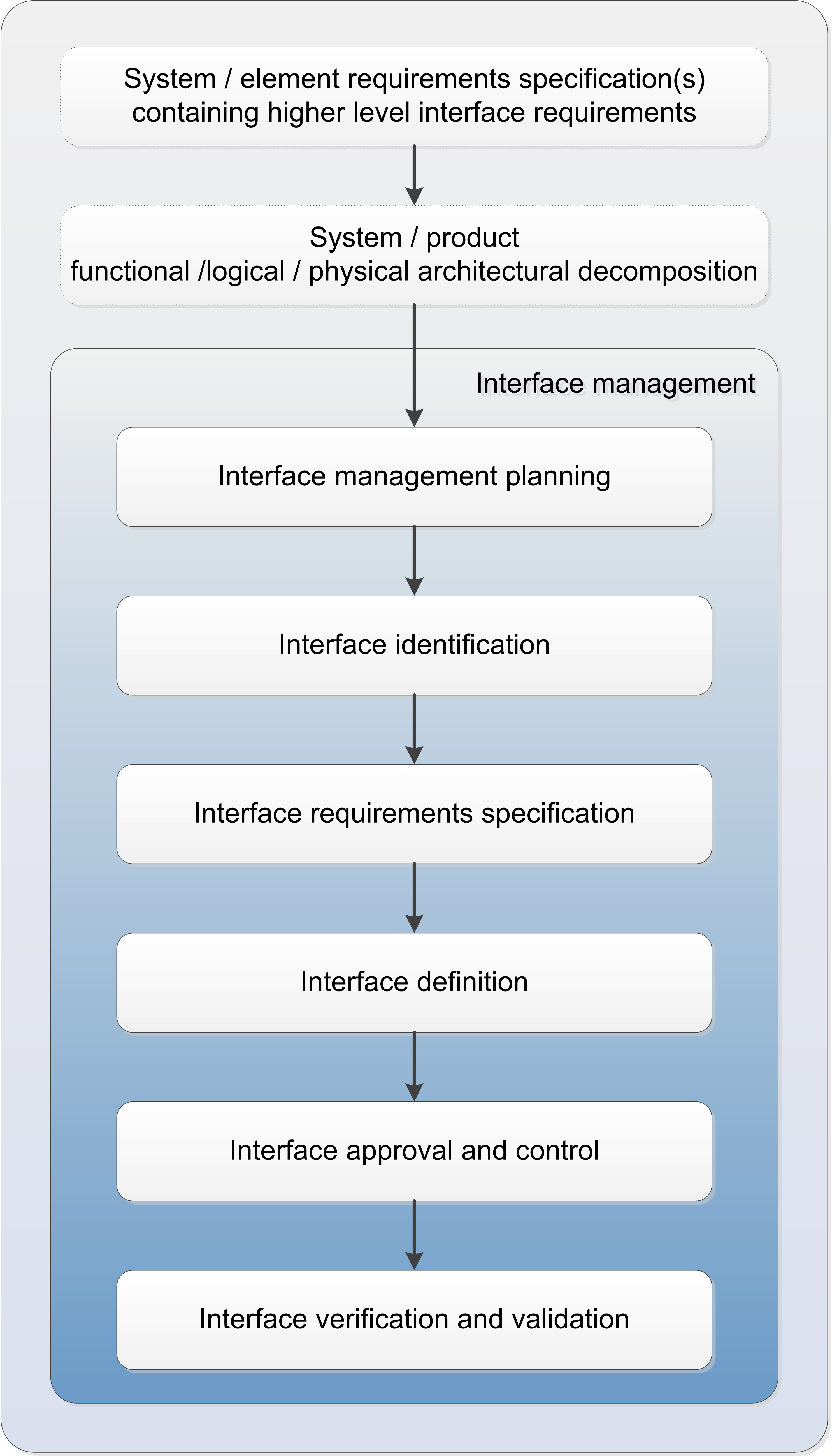

Figure 41 provides an overview of the interface management process.

Figure 41 Interface management process – overview of the main process steps

Interface management planning

At the beginning of the project, each customer defines the approach, the requirements, the responsibilities and the planning for the management of the interfaces.

Interface identification

At the beginning of the project, each customer identifies the interfaces under his responsibility.

This process is repeated by each actor at each level of the customer/supplier chain.

The interface identification is based on product architecture definition, i.e.:

Product functions identification/definition

Product decomposition into elements

Functions allocation to elements

Then the interface identification is further detailed according to the product architecture decomposition.

The identified interfaces can be compiled into a list, including identification of the involved suppliers, as well as the references to the applicable technical documentation.

The output of the interface identification process can be documented in an Interface Identification Document (IID). An example of an IID is given in the informative Annex D.

The IID is a living document which is populated and updated during the interface life cycle, with the references to IRD, ICD, IDD, CR when they become baselined.

The IID becomes therefore the repository that defines and governs the interface baseline status and their unique identification.

Interface requirements specification

Following the interfaces identification, each customer defines the requirements for each interface.

The establishment of interface requirements is part of the requirement engineering process as defined in ECSS-E-ST-10 clause 5.2.

The interface requirements on the identified interfaces are derived from the higher level requirements and functional, logical and physical architectural decomposition, as well as the verification requirements.

An interface requirement defines the functional, performance, electrical, environmental, human, and physical requirements that exist at a common boundary between two or more products.

When the interface requirements specification is completed and baselined, it defines all the design requirements to be adhered to by the supplier who is responsible for the design, development and verification of the interface ends.

The output of the interface requirements specification process is documented in IRDs or in technical requirement specifications.

An IRD applies to the entire interface, including all interface ends.

For each interface requirement, applicability for involved interface end is specified (e.g. one interface end, all interface ends).

The use of an IRD as a self-standing document is not mandatory, however it facilitates consistency of the interface requirements among all involved actors.

IRDs are useful when separate actors are developing components of the system or when the system places requirements on other systems outside programme/project control.

Interface definition

Interface definition is the process of developing a design solution compliant with the applicable interface requirements that ensures compatibility between the involved products.

The definition of an interface is the result of the design activities performed by the customer or his delegate who is responsible for the interface as a whole and by the actors who are responsible for their interface ends.

The inputs for this activity are the IRD(s) provided by the customer and the various interface end definitions of the products as provided by the suppliers.

The definition of the product interface end can be provided in the form of Interface Definition Document (IDD) or “single-end” Interface Control Document (ICD).

The ”single-end” ICD is sometimes referred as “unit ICD” or “equipment ICD”.

The interface definition process is an iterative and converging process, where the number of modifications decreases over time.

The output of the interface definition process is documented in ICD ready to be formally agreed by all parties.

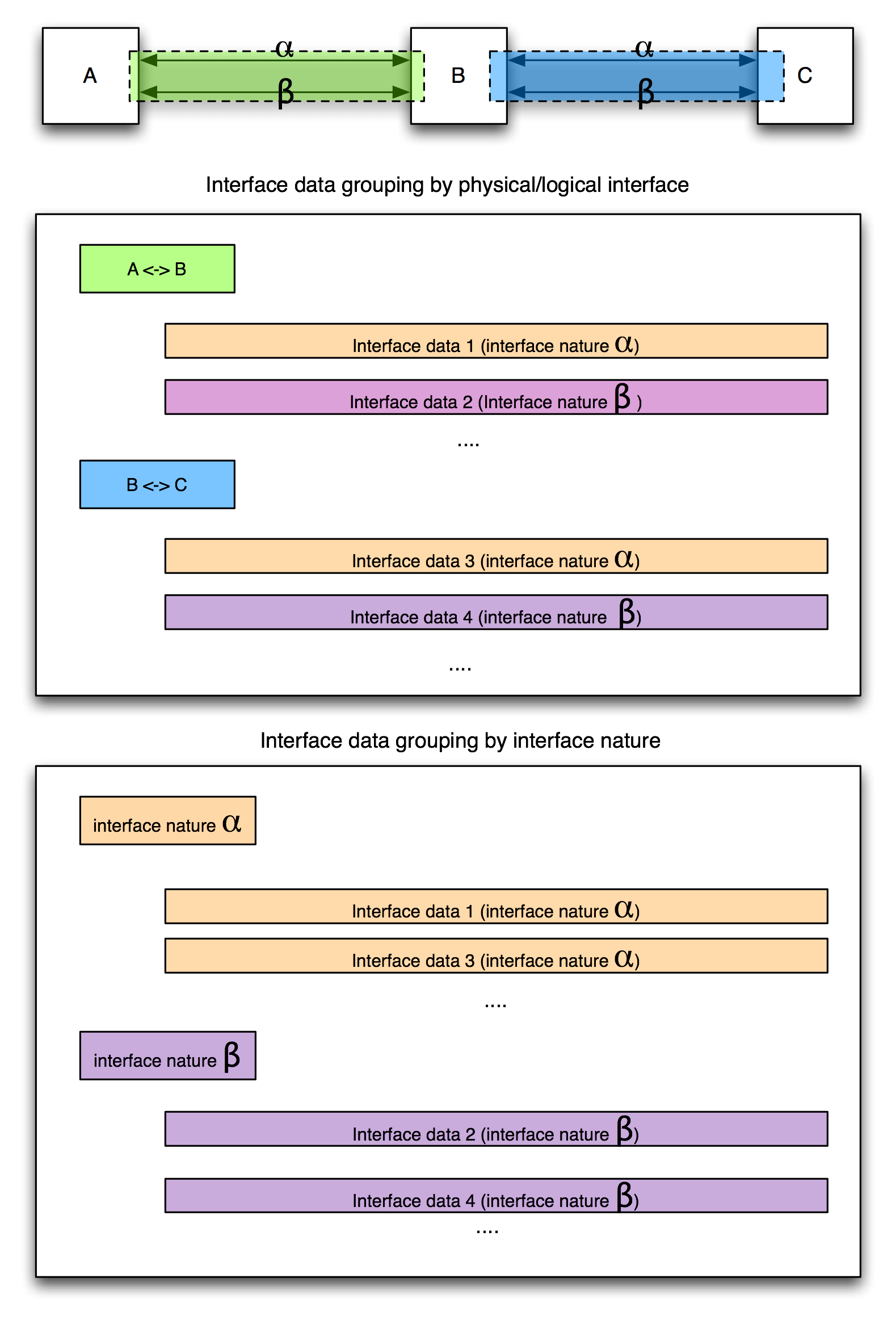

The interfaces can be grouped according to contractual, discipline or product decomposition (product tree).

As part of this process, evolutions may happen leading to an update of IRD(s)

Interface approval and control

Following the interface definition process, the interface control is formalized by issuing the ICD(s) in two steps:

controlled ICD
frozen ICD
The controlled ICD reflects an evolving interface definition, which converges from supplier preliminary design to final one.

The frozen ICD reflects interface baseline considered to be final and complete allowing start of manufacturing, integration, implementation activities.

Both steps are formally issued and subject to configuration control process.

The controlled ICD is signed by the interface responsible only, while the frozen ICD is signed by the interface responsible and all the involved actors, to reflect acceptance.

Signature of all involved parties can be anticipated on controlled ICD.

Any evolution needs to be controlled, and modification approved by all actors.

Since the controlled ICD reflects an evolving interface definition, the evolutions can be controlled in a less formal way, avoiding unnecessary delays and unjustified programmatic impact.

The changes to the IRD and ICD are managed through the generic change control process defined in ECSS-M-ST-40, as follows.

A Change Request (CR) is generated by the interface responsible and used to support the Interface Change Management process.

In case the modification is initiated by a supplier:

When the ICD is in controlled status (not yet signed), this initiation is done by any means agreed between the supplier and the customer.

When the ICD is in frozen status (signed), this initiation is done through a Change Proposal (CP), to be referenced in the CR.

The CR defines in detail a technical change proposal to an existing and baseline ICD (including any already approved CRs affecting the interface).

The CR description includes a graphic or textual description of the change in sufficient detail to permit a clear evaluation, including:

Modification from original to new content

Deletion of existing content

Addition of new content

Effectivity (i.e. point in time or in production series when the change becomes effective)

Urgency, indication of whether this change is critical or routine (if dedicated procedures are defined by the project to manage urgency)

The CR is analyzed and discussed by all involved actors.

For the controlled ICD, the change process is considered completed by the signature of the CR by interface responsible and all the involved actors.

For the controlled ICD, there is no need that suppliers produce a CP unless it is justified, since the ICD modification is normally the results of detailed design activities, which improve interface data definition, rather than a real design change.

For the frozen ICD, each supplier provides their impacts by a CP, to be approved by the Customer before implementation.

When agreed and signed by all parties, CR becomes an accepted modification of the interface baseline, to be incorporated in a new issue of the ICD.

Until the new ICD issue is released, the interface definition baseline consists of the current ICD plus the agreed CRs.

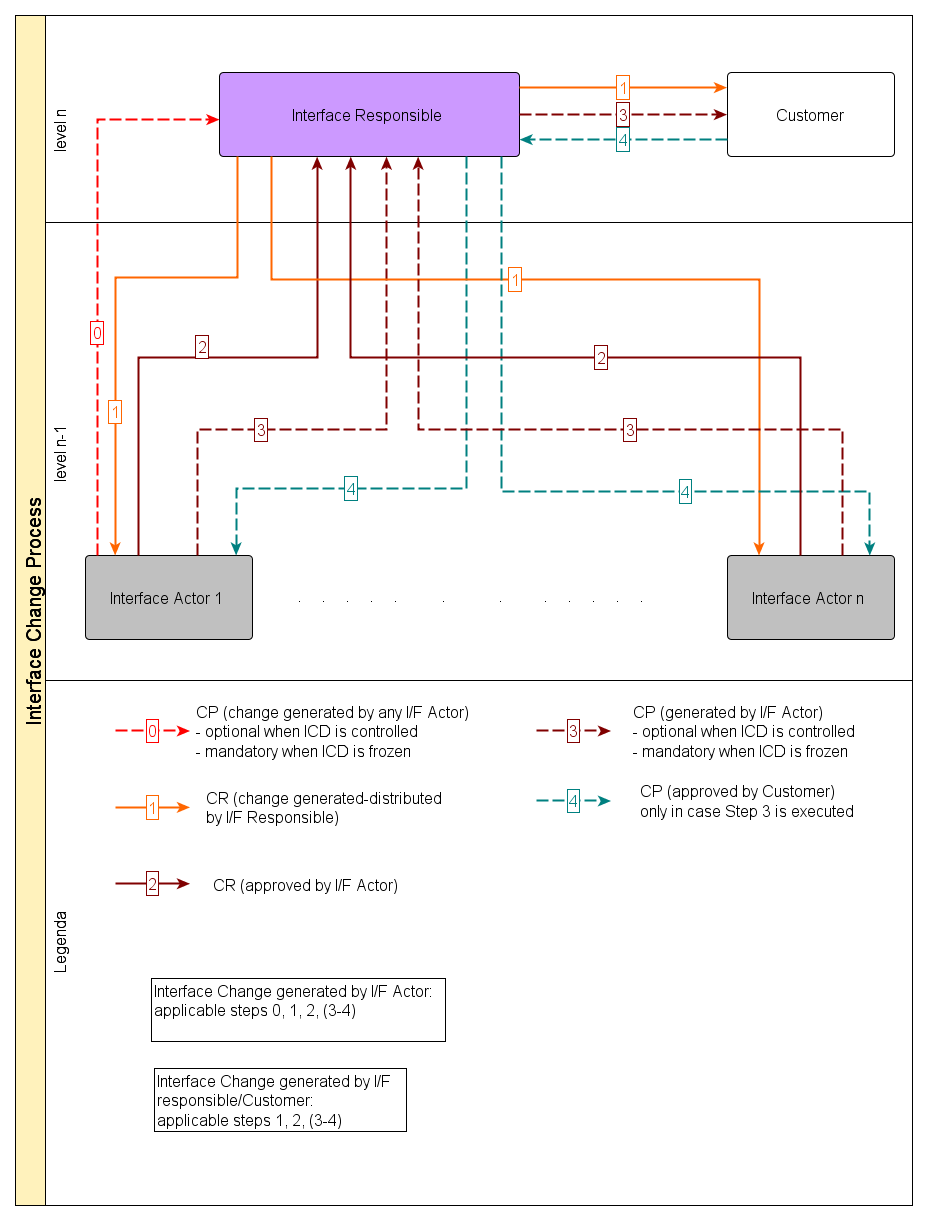

A typical workflow interface change management process is shown in Figure 42.

Figure 42: Interface Change Management Process implementation

Interface verification and validation

Interface requirements are subject to the same verification process as defined in ECCS-E-ST-10-02, as any other requirements.

This process is done in three steps:

Early verification of compatibility of the ICD with the interface requirements, resulting in a signed version of the ICD by both supplier and customer (part of the approval process).
Stand-alone interface end demonstration of compliance with the ICD taking into account the verification requirements associated to interface requirements, performed under the responsibility of the supplier of the relevant product (to be done prior to the delivery of each product).
Joint verification of the interface in terms of functions and performances, involving the different interfacing products, performed under responsibility of the customer (with supplier support) during the integration of the various products, taking into account the verification requirements from higher levels.
The verification logic can include any combination of joint and standalone verification activities.

Interface validation is the activity to demonstrate that the interface is able to accomplish its intended use in the intended operational environment, and can be performed as part of interface management or as part of any higher level product validation activity.

Interface management life cycle

Generic interface management life cycle

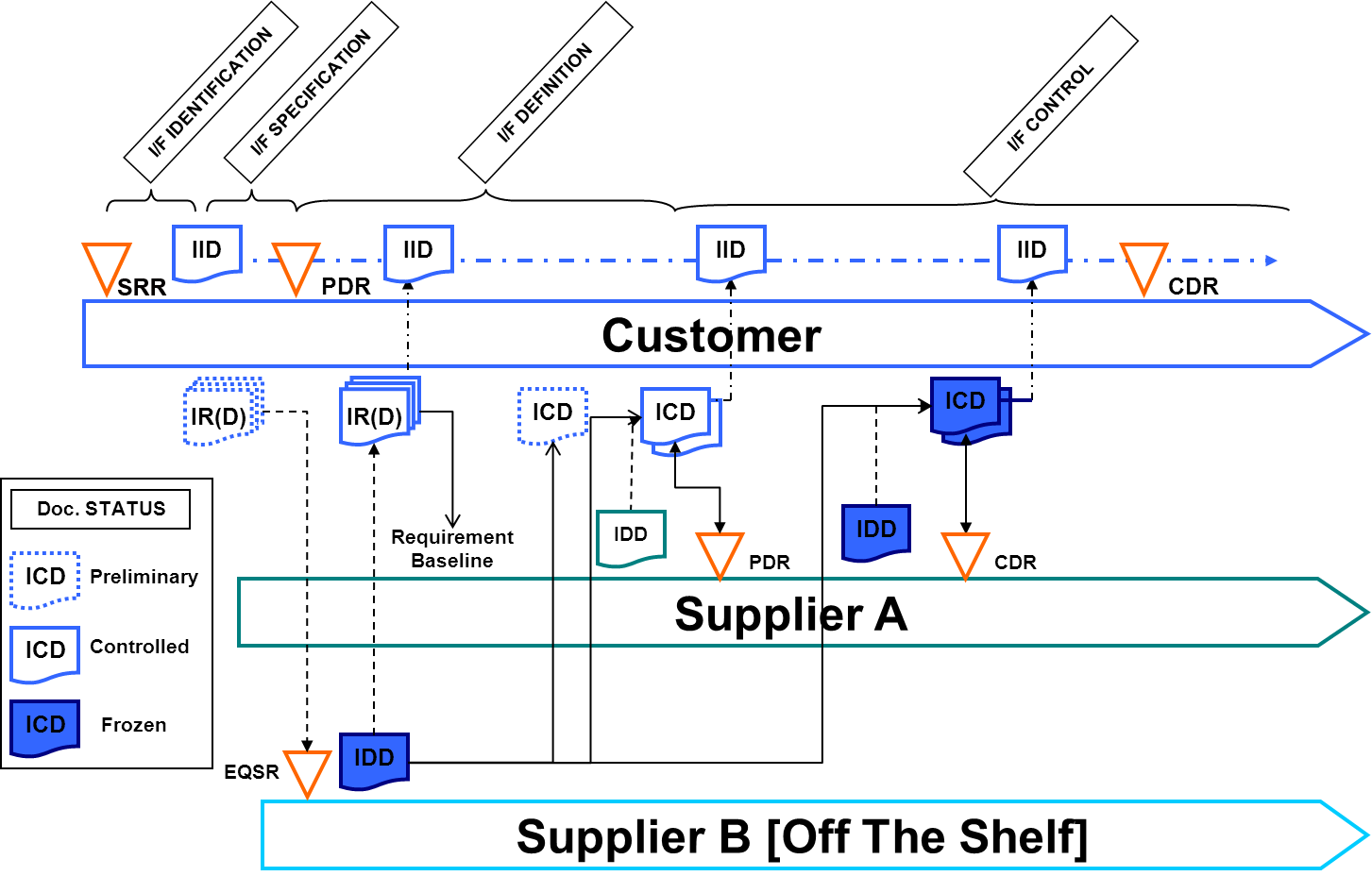

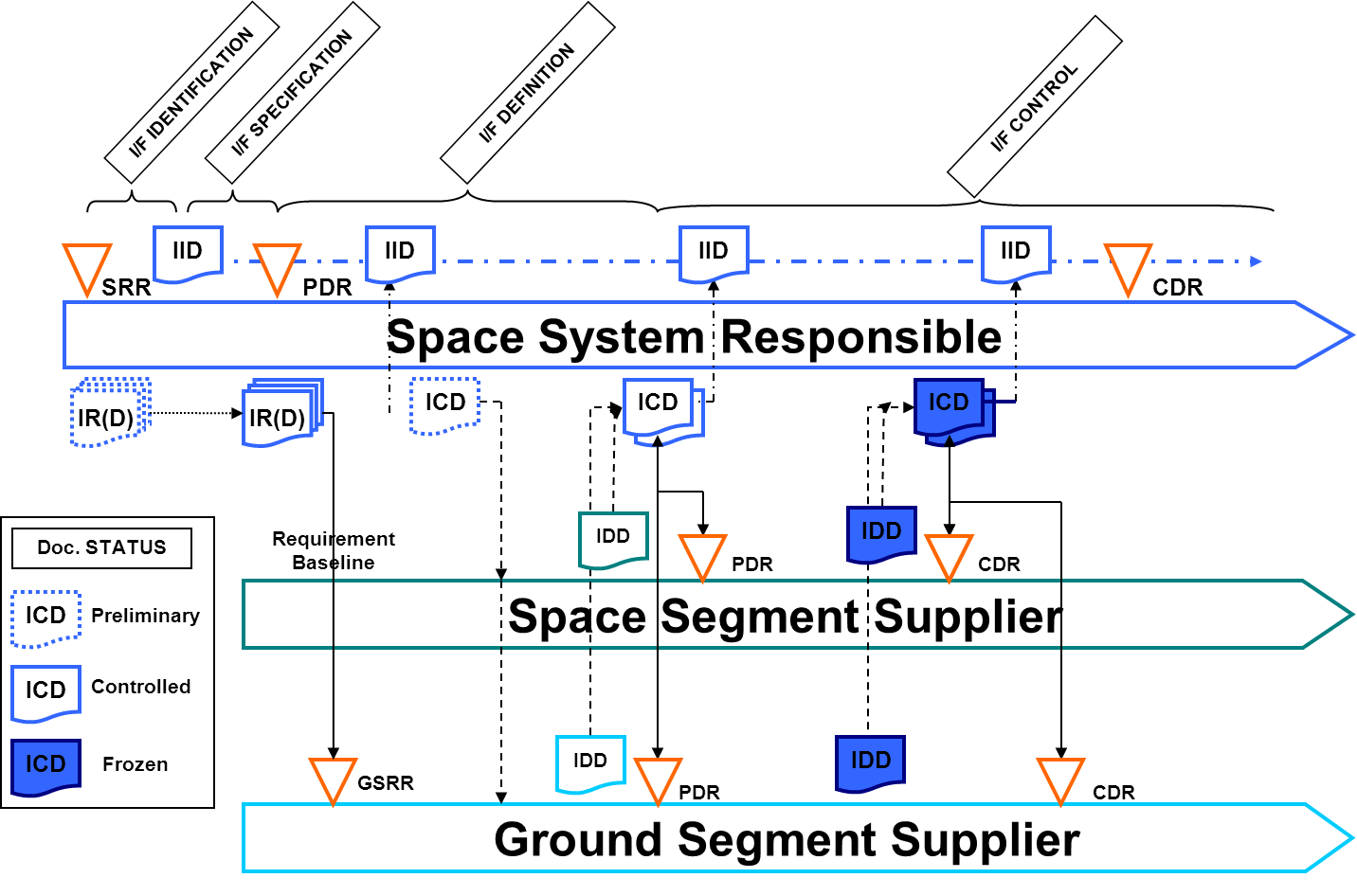

Figure 43 shows a generic life cycle referred to a typical interface involving customer and two suppliers.

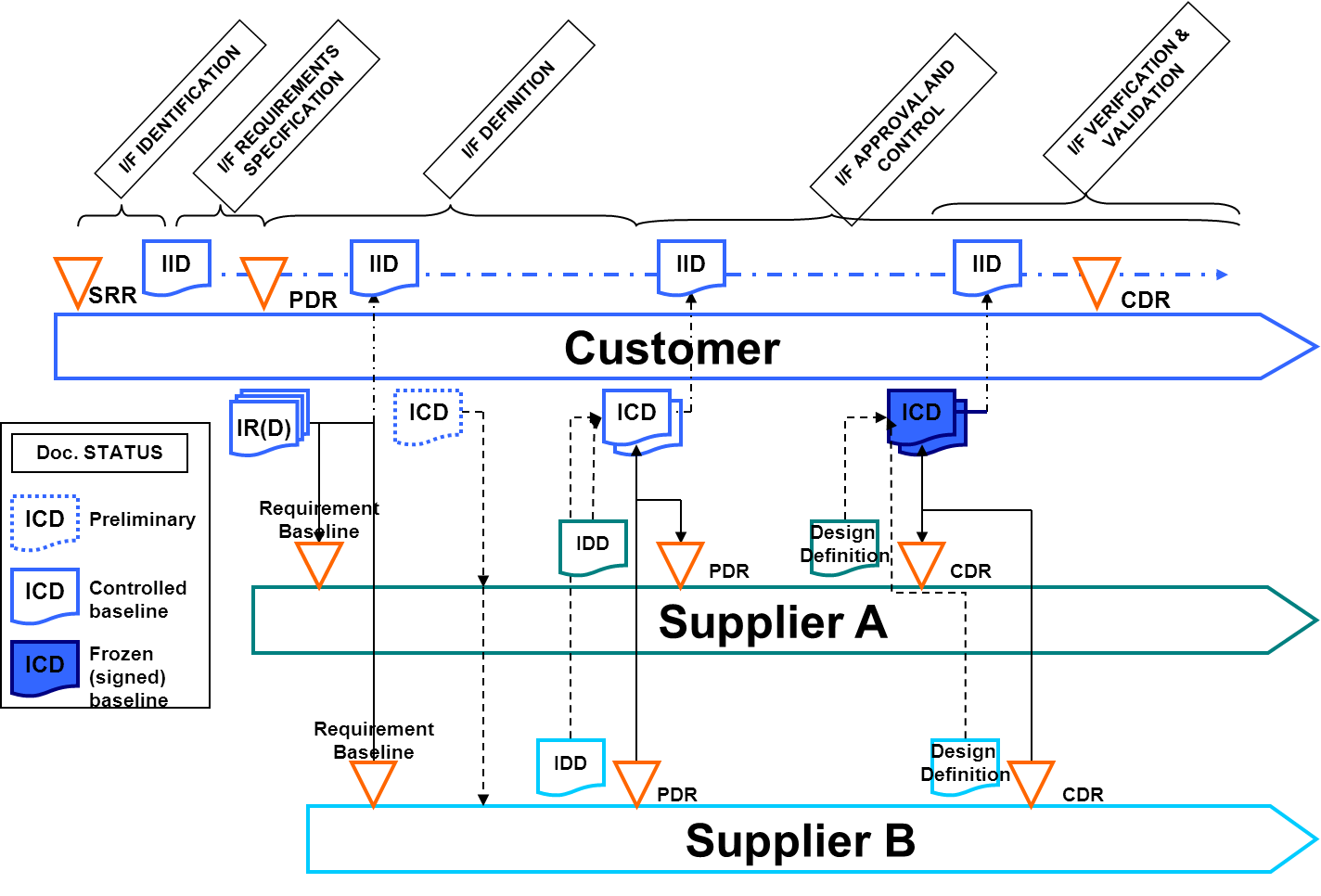

In case more than two levels of customer/supplier are involved, this process is repeated recursively by each actor at each level of the customer/supplier chain.

This life cycle applies to product categories C and D as defined in ECSS-E-ST-10-02 Table 5-1.

The life cycle starts with the identification of the interfaces by the customer (typically between customer SRR and PDR).

After Customer PDR, the Interfaces Requirements applicable to Suppliers are identified and specified by the customer either in a self-standing IRD or embedded in a technical specification applicable to supplier, prior to suppliers’ contract start.

After the supplier's requirements are baselined, the customer establishes the preliminary interface definition, circulating it among the involved actors.

The suppliers provide IDDs and relevant technical design data.

The preliminary ICD is consolidated, formally issued and becomes the controlled ICD for Suppliers’ PDR.

After this stage, changes of the controlled ICD are possible in accordance with the simplified interface control process defined in clause 5.5.

Prior to the Suppliers’ CDRs, under the responsibility of the customer, suppliers and customer consolidate the controlled ICDs to become frozen, and approved by all parties

The approved frozen ICD is considered the final ICD, ready to permit the suppliers to start manufacturing, integration, implementation, or verification activities.

After reaching this stage, changes of the frozen ICD are possible in accordance with the interface control process defined in clause 5.5.

Figure 43: Generic interface management life cycle

Space element – Launch segment interface management life cycle

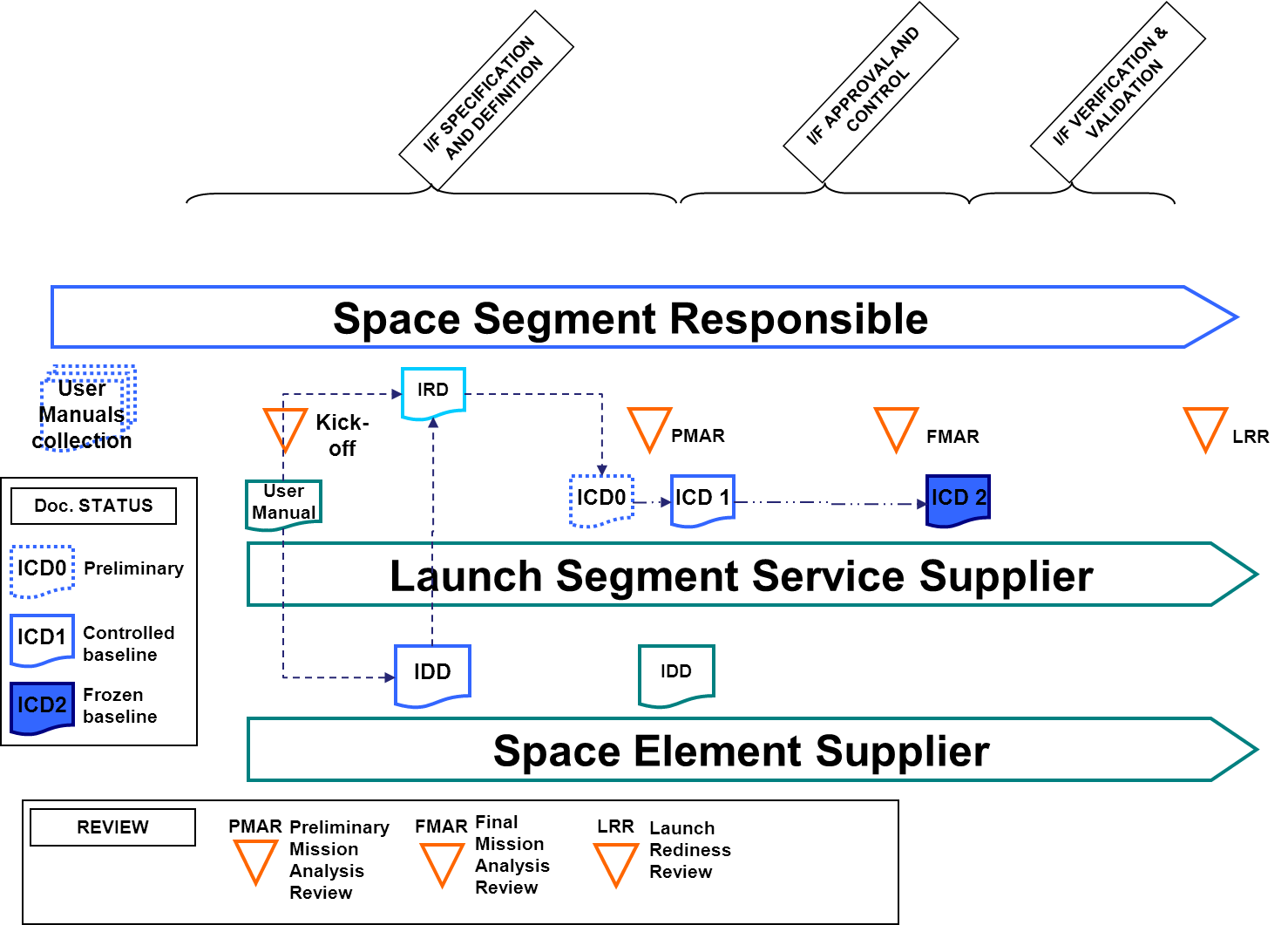

Figure 44 shows a life cycle referred to a typical Space to Launch segment interface life cycle.

The life cycle starts with the selection of the launcher by the space segment responsible, on the basis of available user manuals.

The user manual specifies the minimum duration between kick-off of launcher contract and launch.

After launcher contract kick-off meeting, the space segment responsible, taking into account the boundary conditions specified by the launcher user manual, prepares an IRD that contains:

the mission requirements as specified by the space segment responsible,

the interface definition and constraint coming from the space segment element supplier through the IDD.

On the above data, the launch segment service supplier establishes the preliminary interface definition (Issue 0 of ICD), circulating it among the involved actors.

The preliminary ICD is consolidated, formally issued and becomes the controlled ICD Issue 1 as result of the Preliminary Mission Analysis Review (PMAR).

As results of the Final Mission Analysis Review, the controlled ICD will become the frozen version for flight, approved by all parties.

Figure 44: Typical space to launch segment interface life cycle

Space segment - Ground segment interface management life cycle

Figure 45 shows a life cycle referred to a typical interface involving space segment and ground segment.

The life cycle starts with the identification of the interfaces by the space system responsible (typically between space system SRR and PDR).

The Interfaces Requirements applicable to space segment - ground segment interface are identified and specified by the space system responsible. either in a self-standing IRD or embedded in a specification.

After the interface requirements are baselined, the space system responsible establishes the preliminary interface definition, circulating it among the involved actors.

The segments responsibles provide IDDs and relevant technical design data.

The preliminary ICD is consolidated, formally issued and becomes the controlled ICD for ground and space segment PDRs.

After this stage, changes of the controlled ICD are possible in accordance with the simplified interface control process defined in clause 5.5.

Prior to the ground and space segments CDRs, under the responsibility of the space system responsible, the controlled ICDs is consolidated to become frozen, and approved by all parties.

The approved frozen ICD is considered the final ICD, ready to permit the segments suppliers to start manufacturing, integration, implementation, or verification activities.

After reaching this stage, changes of the frozen ICD are possible in accordance with the interface control process defined in clause 5.5.

Figure 45: Typical space to ground segment interface life cycle

Interface management life cycle involving OTS products

Figure 46 shows the life cycle of an interface involving a category A or B off-the-shelf product and a category C or D product. Refer to ECSS-E-ST-10-02 Table 5-1 for the definition of the product categories.

The life cycle starts with the identification of the interfaces by the customer (typically between customer SRR and PDR) and the selection of the off-the-shelf product.

At the Equipment Qualification Status Review (EQSR), the interface end definition of the off-the-shelf product is captured in the off-the-shelf product IDD. The IDD will be then incorporated into the IRD and ICD.

For the item interfacing with the off-the-shelf product, the generic process of clause 4.3.1 applies, ensuring no modification of off-the-shelf product interface definition.

At the CDR of the item interfacing with the off-the-shelf product, the approved frozen ICD is considered the final ICD, ready to permit suppliers to start manufacturing, integration, implementation, or verification activities.

After reaching this stage, changes of the frozen ICD are possible in accordance with the interface control process defined in clause 5.5.

Figure 46: Typical interface management life cycle involving OTS

Requirements

Interface management planning

An interface management plan shall be established by the interface responsible to describe the Interface Management approach.
The interface management plan may be part of the Project Management Plan (ECSS-M-ST-10 Annex A) or part of the System Engineering Plan (ECSS-E-ST-10 Annex D) or a self-standing document, subject to agreement between the interface responsible and its customer.

The chosen approach depends on the complexity of the project.

The interface management plan shall define the applicability of this standard.
The interface management plan shall define tailoring and adaptation of this standard to Project needs and life cycle.

While interface management steps are mandatory, the way in which each step is documented can be tailored according to the rules defined in each clause of this standard.

The interface management plan shall define at least the:

• applicability domain,
• management logic,
• responsibility and approval authorities,
• interface consolidation approach and life cycle,
• schedule,
• documentation tree,
• internal documentation organization approach (contractual, discipline or product decomposition), and
• change management approach.

Interface identification

The supplier shall list all the interfaces involved within his product.
The interfaces list of 5.2a shall include:
* all interfaces crossing contractual boundaries,
* any interface identified by the customer.

Criteria used by the customer to identify additional interface to be managed within the supplier product, are for example reuse, technical risk, criticality.

For each interface identified in the list of 5.2b, the following shall be provided:
* involved interface ends,
* contractual responsibilities,
* technical documentation and their version specifying and defining the interface.
The information in the list of 5.2b, shall be updated and distributed to the involved actors every time that any applicable document is updated or a baseline established.

This interface information can be in the form of an Interface Identification Document (IID), as defined in Annex D.

Interface requirements specification

The customer shall define the interface requirements in conformance with the IRD DRD in Annex A.

• 1    Information regarding the expected delivery of the document for each project review is provided in Annex A of ECSS-E-ST-10.
• 2    As indicated in DRD Annex A, the IRD content can be merged together with Technical Specification.
  The complete set of interface requirements shall be specified by the customer prior to the start of the supplier’s contract.
  The precedence of the IRD with respect to other project documents shall be defined.
  Suppliers shall provide their compliance status to the interface requirements.
  Nonconformance to interface requirements shall be treated as major NCR in accordance with the NCR process as defined in ECSS-Q-ST-10-09.

Interface definition

The interface responsible shall perform the following tasks:
* collection of interface end data from involved actors;
* sharing of interface data with involved actors;
* coordination of the interface definition compliance with respect to interface requirements of clause 5.3;
* checking of interface end data from suppliers, for:
* consistency,
* mutual compatibility.
* baselining of the interface definition;
* communicating interface changes among involved actors.
The actors shall be responsible of the interface end, by means of:
* contributing to interface definition, providing an IDD, an one-end ICD, or relevant technical design data, in conformance with the IDD DRD in Annex C;
* supporting the iterations of the interface definition, in order to achieve an agreed baseline;
* ensuring interface end compatibility with respect to:
* interface requirement,
* interface definition.
For each identified and specified interface, the interface responsible with the contribution of the involved actors shall define interface characteristics in terms of:
* interface plane definition;
* interface behaviour identification;
* data affecting the interface definition.

• 1    Examples for 5.4c.1 are: mounting surface (between hardware products), Application Program Interface (between software products), communication network (between data systems).
• 2    Examples for 5.4c.2 are: static, dynamic, nominal/off nominal, "state machine".
• 3    Examples for 5.4c.3 are: dimensions, tolerances, coordinates, voltage, data format, temperature, load, heat flow, material, surface treatment, external standard reference.
  To define the interfaces, the interface responsible shall provide an ICD in conformance with the ICD DRD in Annex B.
  The ICD shall be put under configuration control prior to interface end suppliers PDR.
  Nonconformance to ICD shall be treated as major NCR in accordance with the NCR process as defined in ECSS-Q-ST-10-09.

Interface control and approval

Modifications to an ICD shall be managed in conformance with ECSS-M-ST-40, adapting the process as defined in Clause 4.2.6.
The interface responsible shall communicate the approval or non-approval of an interface definition change with a rationale to all the actors.
The interface definition change shall be managed through a CR.
The CR shall be agreed and signed by each of the actors and by the interface responsible before it becomes applicable for implementation.
The interface definition agreed change shall be listed, until relevant CR content is incorporated in a new version of a baseline ICD.

Interface definition agreed change is as documented in the agreed CR.

The ICD shall be consolidated to the frozen status, prior to the CDR of the first product involved in the interface.
The frozen ICD shall be approved (signed) by all involved parties.

Interface verification and validation

Interface requirement verification shall be performed in conformance with ECSS-E-ST-10-02.
The approach for verifying interfaces shall be defined by the customer, identifying the type and method of verification activity.

One of the following types of verification, or a combination:

• Stand-alone verification activity under supplier responsibility.
• Joint verification activity, performed under customer responsibility with supplier support.
  The customer shall define the supplier support needed for any joint verification activity.
  Any stand-alone verification shall be completed successfully prior to the joint verification applicable to the same interface.
  The customer and the suppliers shall agree whether interface validation is included or not.
  If validation is included, the customer and suppliers shall agree on the interface validation approach.

ANNEX(normative)Interface Requirements Document (IRD) - DRD

DRD identification

Requirement identification and source document

This DRD is called from ECSS-E-ST-10-24, requirement 5.3a.

Purpose and objective

For a product, the interface requirements document (IRD) is a specific type of technical requirements specification that defines the requirements for an interface or a collection of interfaces.

The IRD is a document either included in or called up by a technical requirements specification (TS) as defined in ECSS-E-ST-10-06.

Expected response

Scope and content

Introduction

The IRD shall contain a description of the purpose, objective, content and the reason prompting its preparation.
Applicable and reference documents

The IRD shall list the applicable and reference documents in support to the generation of the document.
The relationship and precedence of the IRD to other project documents shall be clearly defined.
The IRD shall include the following references:
* Product tree (as defined in ECSS-M-ST-10 Annex B),
* Specification tree (as defined in ECSS-E-ST-10),

• References to requirements specified in other Technical requirement specifications or Standards which are applicable for a particular Interface.

For example, an IRD can refer to individual requirements coming from Technical Requirement Specification such as GDIR (General Design and Interface Requirements) or SSS (System Support Specification) or Standards such as MIL-STD-1553 Bus.

It shall be confirmed that the IRD does not include duplicate or conflicting requirements already specified in another Technical requirements specification applicable to any interface end.
Definition of terms and abbreviated terms

The applicable dictionary or glossary and the meaning of specific terms or abbreviation utilized in IRD shall be defined.
Interface requirements

The IRD shall define the physical, functional, procedural and operational interface requirements between two or more items in the product tree and ensure hardware and software compatibility.

Interface requirements include for example, physical measures, definitions of sequences, of energy or information transfer, design constraints, and all other significant interactions between items.

Interface Requirements shall be specified in accordance with ECSS-E-ST-10-06.
Each interface requirements shall be accompanied by its verification requirements.
For each verification requirement as defined in A.2.1<4>c., the verification responsibility shall be defined.

This can be joint responsibility, stand-alone responsibility or any combination of them.

The IRD shall specify the requirements of an interface, for all identified interface ends.
The IRD shall specify for each requirement the applicability to each interface end.
In case of an existing interface end design, the interface requirements shall address:
* interface plane definition,
* interface behaviour definition,
* data affecting the interface definition.
In addition to the general requirements defined in ECSS-E-ST-10-06, for each interface requirement the applicability to each interface end shall be specified.
In case the IRD addresses more than one interface, the interface requirements shall be grouped either by interface end pair, by nature of interface, or by contractual party.

An example of grouping by nature of interface is arranging the requirements by discipline such as mechanical, electrical, thermal and software/data. See also Annex E.

Items to be addressed

For each interface, the following aspects shall be addressed:

• interface description using tables, figures, or drawings,
• units of measure including scale of measure,
• tolerances or required accuracies,
• in case of using non-SI quantities or units, conversions and conventions,
• interface plane specification,
• coordinate system specification, in case of interfaces involving geometric aspects,
• interface behaviour specification, including limitation of use.
• 1    Example of interface plane is the separation plane between launch adapter and spacecraft.
• 2    Example of limitation of use is decrease in capability.
  Interface requirements shall be built starting from the Reference Interface Data List of Annex E and adding all data necessary to specify the interface.

It is good practice to group the interface requirements by the interface natures as defined in Annex E.

Special remarks

The content of the IRD may be merged with the content of the technical requirements specification (as defined in ECSS-E-ST-10-06 Annex A) of the product.

ANNEX(normative)Interface Control Document (ICD) – DRD

DRD identification

Requirement identification and source document

This DRD is called from ECSS-E-ST-10-24, requirement 5.4d.

Purpose and objective

The purpose of the ICD is to define the design of the interface(s) ensuring compatibility among involved interface ends by documenting form, fit, and function.

The Interface Control Document (ICD) can be, either:

a single self-standing document defining the interface.

a single document, referencing other documents (e.g. IDD, single-end ICD, interface drawings), which define separately the involved interface ends.

a single document, annexing a set of IDDs (or single-end ICDs), made integrally and jointly applicable to all the involved interface ends. In this case, the entire set of documents (issued by the suppliers, coordinated by the customer and approved by all the involved actors) is integrally and jointly controlling the interface: therefore, the rules and requirement hereafter specified are intended to be applicable either to the single ICD or jointly to the entire set of documents, depending on the selected approach.

The ICD is managed by the customer (or his delegate) and concurred by all the involved actors.

The ICD is used:

to document the interface definition,
to control the evolution of the interface,
to document the design solutions to be adhered to, for a particular interface,
as one of the means to ensure that the supplier design (and subsequent implementation) are consistent with the interface requirements,
as one of the means to ensure that the designs (and subsequent implementation) of the participating interface ends are compatible.

Expected response

Scope and content

Introduction

The ICD shall contain a description of the purpose, objective, content and the reason prompting its preparation.
Responsibility

The responsibilities of the interfacing organizations for development of the ICD shall be stated.
The document approval authority (including change approval authority) shall be defined.
The interface ends responsible shall be stated.
Applicable and reference documents

The ICD shall list the applicable and reference documents and standards in support to the generation of the document.
The relationship and precedence of the ICD to other programme documents shall be clearly defined.
The ICD shall include the following references:
* Product tree (as defined in ECSS-M-ST-10 Annex B),
* Specification tree (as defined in ECSS-E-ST-10).
Definition of terms and abbreviated terms

The applicable dictionary or glossary and the meaning of specific terms or abbreviation utilized in ICD shall be defined.
Interface definition

The interface responsible shall establish a complete and exhaustive list of technical characteristics of the interface to be reflected in the interface definition/data.

Informative Annex E lists a number of example aspects to be considered in interface definition. The list is meant to be used as a starting point but cannot be considered exhaustive.

For each identified and specified interface, the interface responsible accounting for the contribution of the involved actors shall define interface characteristics in terms of:
* interface plane definition,
* interface behaviour identification, including limitation of use,
* interface description using tables, figures, drawings, models, data base as appropriate,
* data affecting the interface definition,
* units of measure including scale of measure,
* tolerances or required accuracies,
* in case of using non-SI quantities or units, conversions and conversions.

• 1    Examples for item 1 are: mounting surface (between hardware products), Application Program Interface (between software products), communication network (between data systems).
• 2    Examples for item 2 are: static, dynamic, nominal/off nominal, state machine. Possible limitation of use is coming from a decrease of capability.
• 3    Example of item 3 are: mechanical drawing, interface 3D CAD model, electrical circuit schematic, software API, software architectural or detailed design document.
• 4    Examples for item 4 are: dimensions, tolerances, coordinates, voltage, data format, temperature, load, heat flow, material, surface treatment, external standard reference.
  The ICD shall detail the interface definition between two (or more) interface ends.
  The ICD shall be grouped by contractual, discipline or product decomposition (product tree).
  Each ICD version shall identify the incorporated approved CR.
  The interface definitions shall be grouped per pair of interface ends having a common interface plane.
  In case the ICD addresses more than one interface, the interface definition shall be grouped either per physical/logical interface, or per nature of interface.
• 1    An example of physical/logical grouping is arranging the interface data by a pair of interface ends (see Figure B-1).
• 2    An example of grouping by nature is arranging the interface data by discipline such as mechanical, electrical, thermal and software/data (see Figure B-1).
• 3    It is a good practice to group the interface requirements by the interface natures defined in Annex E.
  Figure: Examples of interface data grouping in ICDs

Special remarks

None.

ANNEX(normative)Interface Definition Document (IDD) or Single-end Interface Control Document – DRD

DRD identification

Requirement identification and source document

This DRD is called from ECSS-E-ST-10-24, requirement 5.4b.1.

The supplier of an interface end is responsible for the associated IDD.

Purpose and objective

The purpose of the IDD is to document the current design of an interface end.

• 1    Often, the IDD is called “Single-end ICD”. In such case, there is no need to change the name of this document.
• 2    The ”Single-end ICD” is sometimes referred as “unit ICD” or “equipment ICD”.
• 3    When interface is controlled by a set of IDDs/Single-end ICDs, it is suggested if possible, to change the name of IDD in “Single-end ICD” at interface baselining.
  The IDD is a unilateral document issued and controlled by the interface end supplier.

The IDD is used:

to document the interface end definition,
to control the evolution of the interface end,
to document the design solutions to be adhered to, for a particular interface end,
as one of the means to ensure that the supplier design (and subsequent implementation) are consistent with the interface requirements and interface definition,
as one of the means to ensure that the designs (and subsequent implementation) of the participating interface ends are compatible.

Expected response

Scope and content

Introduction

The IDD shall contain a description of the purpose, objective, content and the reason prompting its preparation.
Responsibility

The IDD shall be issued and controlled by the interface end supplier.
The document approval authority (including change approval authority) shall be defined.
Applicable and reference documents

The IDD shall list the applicable and reference documents and standards in support to the generation of the document.
The relationship and precedence of the IDD to other programme documents shall be clearly defined.
Definition of terms and abbreviated terms

The applicable dictionary or glossary and the meaning of specific terms or abbreviation utilized in IDD shall be defined.
Interface end definition

The IDD shall contain:

• interface end description and data definition using tables, figures, drawings, models, data base as appropriate,
• units of measure including scale of measure,
• tolerances or required accuracies,
• in case of using non-SI quantities or units, conversions and conventions,
• interface plane implementation,
• interface end behaviour,
• interface end data. Interface end data shall be built starting from the Reference Interface Data List of Annex E and further identify all data necessary to document the design of the interface end.

It is recommended to group the interface end data by the interface natures defined in Annex E.

Special remarks

Form

The IDD may take different forms depending on the kind of interface end it documents.

Examples of different forms are: a mechanical drawing, interface 3D CAD model, electrical circuit schematic, software API, software architectural or detailed design document.

The IDD may be a container with unambiguous references into the supplier's Design Definition File (DDF).

IDD covers the formerly called "interface inputs" from the supplier to the customer.

ANNEX(informative)Proposed content of an "Interface Identification Document (IID)"

Purpose and objective

The interface identification document (IID), as proposed by the Note of requirement 5.2d, contains the index of all identified interfaces.

For completeness, the IID also list the external interfaces.

For each interface the IID lists the references to the applicable IRD, IDD, ICD and change requests, including version and responsible for each document

The IID also lists reference to any standard that is applicable for all interfaces it describes.

Scope and content

Introduction

The IID describes the purpose, objective, content and the reason prompting its preparation.

The IID describes/illustrates the interface context at the appropriate decomposition level, i.e. showing the items being interfaced, by referencing the applicable Product and architecture documentation or including a context interface diagram.

Applicable and reference documents

The IID lists the applicable and reference documents in support to the generation of the document.
The IID includes the following references:

• Product tree (as defined in ECSS-M-ST-10 Annex B),
• Standards applicable (e.g. ECSS, CCSDS, Project defined standards).

Interface list

The identified interfaces are listed as a series of interface records.
Each interface record contains as a minimum the following fields:
unique interface identifier,
reference to the participating interface ends,
interface responsible,
interface actors responsible of each interface end,
references to applicable documents, i.e. interface requirements baseline, ICD, IDD, CR, which defines the baseline of the interface addressed in the record.

• 1    Initially, the list of references can be empty. It will be populated over the life cycle of the interface.
• 2    Use specific references, i.e. include document identifier, version identifier, relevant section number.

Special remarks

The IID is intended to be a living document that is actively maintained to be up-to-date for the duration of a programme or project. Therefore the IID can be implemented in the form of a web / database application.

The interface records can be grouped by discipline, by contract or WBS element or by item within the product tree.

Examples for interface record are:

Grouped by item within the product tree:

Mission Control System <-> Ground Station

Space Segment <-> Mission Control Centre

XB Antenna Adapter <-> Platform

Payload <-> EGSE

UNIT 1 <-> UNIT 2

Grouped by discipline:

UNIT 1 <-> UNIT 2 Electrical Interface Signalling

UNIT 1 <-> UNIT 2 Electrical Interface Power Supply

UNIT 1 <-> UNIT 2 Mechanical Interface

UNIT 1 <-> UNIT 2 Data Interface Commanding

UNIT 1 <-> UNIT 2 Data Interface Telemetry

Grouped by contract or WBS element:

UNIT 1 <-> UNIT 2 Company 1 Interface (electrical, mechanical)

UNIT 1 <-> UNIT 2 Company 2 Interface (data)

ANNEX(informative)Reference interface data list

Introduction

This annex describes the reference list of interface data to take into account when creating or updating an IRD, ICD or IDD.

As it is impossible to produce an exhaustive list that is valid for any space project, this list can be used as a reference and starting point and is by definition not exhaustive. However where applicable it is good practice to use the terms and grouping of this list, in order to promote the uniformity of interface specifications and definitions.

The reference list of interface data is described in this annex at two levels:

Clause E.2 contains interface data characterization and the description of the list, identifying the interface natures and the ECSS disciplines to which they belong.

Clause E.3 expands this information, listing the interface data, grouped by natures as identified in clause E.2.

This annex has been built to have data relevant listed under the header of the discipline but avoiding as much as possible repetition of data (e.g. geometry is listed under mechanical but is needed for many other disciplines). Being listed under one discipline does not exclude the relevance of the data for other disciplines.

Interface nature and data characterisation

Interface nature

The interface data are grouped by interface nature, with further hierarchical decomposition into subgroups of related data where deemed useful.

The nature of an interface designates a grouping of related interface data, typically in an engineering discipline oriented way.

Table E-1 lists the identified interface natures. The order follows the numbering of the main ECSS discipline.

Table: Identified interface natures and corresponding ECSS disciplines

Interface nature	Corresponding ECSS discipline(s)
Coordinate System and Time	E-10 – System engineering
Space environment	E-10 – System engineering
Man-machine	E-10 – System engineering
Electrical	E-20 – Electrical and optical engineering
Optical	E-20 – Electrical and optical engineering
Thermal control	E-30 – Mechanical engineering
Structural	E-30 – Mechanical engineering
Mechanisms	E-30 – Mechanical engineering
Propulsion	E-30 – Mechanical engineering
Aerothermodynamics	E-30 – Mechanical engineering
Hydraulics	E-30 – Mechanical engineering
Data representation	E-40 – Software engineering E-50 – Communications E-70 – Ground systems and operation
Software	E-40 – Software engineering
Communications	E-50 – Communications
Control	E-60 – Control engineering
Operations	E-70 – Ground systems and operation
Materials	Q-70 – Materials, mechanical parts and processes

Interface data characterization

Interface data are characterized by specifying:

the applicable engineering units, scales and conversion rules for any numerical characteristic (parameter).
the applicable value(s) for any numerical characteristic (parameter), including:
nominal value or value range
accuracy
uncertainty
tolerance
margin (relative or absolute)
permissible error
probabilistic and distribution characteristics (e.g. kind of distribution, standard deviation, power spectral density, energy spectral density).
the applicable values for the relevant modes, for any characteristic that is mode dependent.

Interface data list

Coordinate system and time

Coordinate system (see ECSS-E-ST-10-09 for details):
Inertial Coordinate Systems
Orbital Coordinate Systems
Launcher Coordinate Systems
Satellite-fixed Coordinate System (generic platform and payload)
Body-fixed Rotation (planet) Coordinate Systems
Topocentric Coordinate Systems
Test facility Coordinate Systems
Simulator Coordinate Systems
Processing / Product Coordinate Systems (e.g. equipment, unit, sub assembly, part).
Euler angle definition (see ECSS-E-ST-10-09 for details).
Attitude quaternion convention (see ECSS-E-ST-10-09 for details).
Time reference:
Reference
Format
Adjustment update and reset
Relationship with external time sources
Relationship between time systems.

Space environment

Particle radiation fluxes:
Mission average electron energy spectrum
Mission average proton energy spectrum
Solar proton fluence spectrum
Peak electron energy spectrum
Peak proton energy spectrum
Peak solar proton flux spectrum.
Mission dose-depth curve:
Ionising dose
Non-ionising dose
Effective dose equivalent (radiobiological).
LET spectra
Damage-equivalent fluences for solar cells
Plasma environment:
Worst-case surface charging environment (bi-maxwellian temperatures and densities)
Mean plasma environment
Cold plasma density, temperature, composition, relative velocity (high-voltage interactions and ram-wake effects).
Micro-particle environment (size and velocity distribution):
Micro-debris (non-trackable population)
Micrometeoroids.
Planetary magnetic field:
Mean field strength, direction
Short term variations and activity indices.
Solar activity:
Solar irradiance spectrum (including UV)
Activity indices (F10.7, Sunspot number)
Minimum, mean and maximum constant values for short and long periods
Reference values over one solar cycle.
Earth atmosphere:
Total and constituent (e.g. atomic oxygen) densities for minimum, mean and maximum solar and geomagnetic activity
Composition for minimum, mean and maximum solar and geomagnetic activity.
Planetary atmosphere:
Climate database (global distributions of atmospheric parameters).
Induced permanent deposit.
Contamination from purge.
Solar panels contamination.
Droplets contamination.

Man-machine

Anthropometry and bio-mechanics:
Body size
Joint Motion
Reach
Neutral Body Posture
Body Surface Area
Body Volume
Body Mass Properties
Strength.
Sensation and perception:
Vision
Auditory System
Olfaction and Taste
Vestibular system
Kinaesthesia
Reaction Time
Coordination.
Environment:
Atmosphere
Microgravity
Acceleration
Acoustics
Vibration
Radiation
Thermal Environment.
Human-computer interface:
Data Display
Text
Tables
Graphics
Coding
Window Displays
Format Design
Information Display Rate
User Computer Dialogues
Movement within User Interfaces
Manipulating Data
User Guidance.

Electrical

Power interface data:
Power consumption
Input and Output Power interfaces:
Minimum / maximum voltage
Impedance
Undervoltage switch-off
Overvoltage protection
Output voltage on/off time (rise/fall time)
Current (maximum operating, inrush, inrush duration, current rate of change)
Over-current protection (type, nominal current, current limitation and duration)
Drop-out limits.
Grounding and insulation:
Grounding concept
Internal grounding diagram
Insulation.
Signal interface data:
Signal type (e.g. analogue, discrete, bi-level, multi-level)
Signal function (e.g. command, measurement, status, clock)
Circuit diagram / signal level diagram
Electrical characteristics (depending on the technology, e.g. static, dynamic and protection):
Signal characteristics
Signalling system (e.g. single ended, differential)
Signal transfer (e.g. DC-coupled)
Signal level (interface voltage low / high)
Transfer function for analogue signal
Interface resistance (open / closed condition)
Logical representation (e.g.: 0 = low = false; 1 = high = true)
Driving capability
Operating current
Minimum open circuit voltage
Impedance (line-line)
Ripple and signal-to-noise ratio
Common mode voltage (CMV, CMRR)
Overvoltage protection
Fault voltage emission
Fault current emission
Current limitation
DC isolation (to structure)
Interface behaviour specifics in OFF condition.
Harness interfaces:
Connector interface data – per connector:
Specific requirements or remarks
Identifier (Jxx / Pxx)
Function
Part number
Coding (e.g. key, colour)
Number of pins
Gender (male/female)
Specification
Lockers /Backshell part number and material.
Connector interface data – per pin:
Pin number
Component type / specification
Function
Polarity (P = plus, M = minus, R = reversible).
Wiring:
Type of cable (e.g. single wire, twisted shielded pair, coax)
Wire gauge
Insulation
Shielding / grounding
Impedance
Maximum/minimum cable length
Coding (e.g. colour).
Bundle:
Composition
Protection/Coating/Shielding
Coding
Constraint (e.g. minimum bending radius, maximum unsupported length).
Telemetry / telecommand list and description.
Data bus interface:
Physical interface:
Standard interface (e.g. Mil-1553-STD, Spacewire, EIA485)
Detailed description.
Data interface:
Data bus architecture (star or bus topology)
Coding (encoding, decoding)
Bit rate / data rate
Bit error rate
Data protocol / structure / framing (e.g. address, data fields, checksum)
Word length (number of bits per word)
First bit in transfer (MSB, LSB)
Data packet description
Signal / data representation
Communication / data traffic rules (master / slave, broadcast messages, acknowledgement of receipt)
Synchronisation (synchronous / asynchronous data transfer)
Timing
Start / end delimiters
Response time
Jitter
Error handling
Bus protocol (e.g. Ethernet, CCSDS).

Optical

Optical characteristics of surfaces (e.g. body, solar arrays, radiators, MLI, coatings lenses, windows):
Reflectivity
Absorptivity
Emissivity
Transmissivity
Specularity
Brightness definition, coefficients.
Spectrum (band centre, bandwidth, distribution)
Light sources
Reflectors
Video target (layout, characteristics)
Optical sensors passive or active (layout, characteristics, field of view)
Coatings and surface finishes
Ranging cues (layout, characteristics)

Thermal control

Baseplate thermal contact area
Special thermal mounting constraints (e.g. thermal fillers, washers, thermal insulation)
Heat transfer mode / environment (conduction, radiation, convection)
Temperature reference point(s)
Temperature range for each mode (e.g. operational, non-operational, storage, transport), and minimum switch-on temperature
Temperature stability at temperature reference point(s)
Thermal gradients
Heat capacity
Solar absorptance for exposed surfaces (BOL, EOL)
Infra-red emittance for surfaces (BOL, EOL)
Contact area coplanarity
Contact area flatness
Contact area roughness
Minimum, nominal, maximum dissipated power (e.g. from unit, from heater) and relevant time-profile for each phase/configuration/life condition (e.g. BOL, EOL)
Maximum power density (e.g. for heater, for heat pipes)
Authorized zones definition, external location for application of thermal hardware (e.g. MLI, heaters, thermostats, thermistors, Velcro)
Interface thermal mathematical models
Humidity and condensation (for Environmental Control and Life Support, materials and equipment)
Interface heat flux and heat flux limits at all thermal interfaces

Structural

Reference coordinate system definition and reference hole
Envelope dimensions
Mass (nominal, uncertainty, dispersion)
Centre of gravity (nominal, uncertainty, dispersion)
Moments of inertia (nominal, uncertainty, dispersion)
Mounting hardware definition (standard)
Mounting holes size and location
Mounting pads thickness for screw length definition
Geometrical tolerances
Venting holes location
Special mounting and maintenance geometrical constraints
RF ports geometry
RF ports location and orientation
Connector locations
Torques applied
Recommended torque for mobile part
Bonding, grounding studs, type identification and fixing point location
Alignment devices location and definition
Adjustment and alignment information
Contact area materials, coatings and finishing
Contact surface flatness and roughness
External material and coating per zone
Interface description for special handling and installation
Pneumatic interface geometrical definition
Hydraulic interface geometrical definition
Configuration and layout (including stay-in and stay-out zones)
Related loose parts (bolts, nuts, washers, …)
Static loads, dynamic loads, shock, acoustic vibration
Acoustic noise (frequency, spectrum, level)
Interface mechanical mathematical models

Mechanisms

Mobile parts and motion
Static geometrical envelopes (stowed and deployed)
Deployment envelope (kinematic)
Operational envelope
Lubrication
Design life (Sequence and timing, number of operations and activations)

Propulsion

Propulsion overall:
Performance tables
Performances at the propulsion reference point
Nominal performance ranges for the pressure regulated domain
Global performance ranges for the whole nominal operating domain
Global performance ranges in off-nominal situation
Thrusters use limits
Modes
Monitoring
Operations
Propellant level
Propellant budget
Thrusters:
Maximum thrust
Minimum thrust
Utilization
Commanding
Induced plume environment:
Thrusters plume model
Thrusters configuration
Thrusters firing scenarios
Contamination
Pressure

Aerothermodynamics

Reference surface
Time history of aerodynamics and aerothermodynamics databases variables and uncertainties

Hydraulics

Geometrical definition (e.g. tube ends, flanges, holes)
Applicable fitting/disconnect standard PN
Fitting envelope constraints
Transported fluid
Filtration requirements
Other receive/supply fluid quality
Liquid/gas interface temperatures
Interface pressures
Interface flow rates
Allowed pressure drop/ required pressure rise
Contact area materials and finishing constraints
Allowed liquid/gas loop leakages
Loop isolation requirements
Liquid/gas exchange conditions

Data representation

Data representation
Bit numbering
Endianness (big, little)
Data transmission ordering
Unused words and bits
Data types definition

Software

Operating system
Operating hardware
Required software libraries
Required compiler, build environment
API definition (i.e. function prototype/signature, input/output parameter format and type, exceptions, not implemented/not allowed functionality, non-functional related effects, etc.)
Errors and warnings returned
Timing constraints
Shared memory location and content
Semaphores and locks
Memory map
Symbol map
Map of registers – including name, physical address and read/write instructions)
Map of inputs/outputs – including name, physical address and read/write instructions
List of interrupts
Telecommand interface and data
Telemetry interface and data
List of available services/functions
Thread-safe compliance
Memory load, dump and check procedures/services
Smallest addressable unit

Communications

Radio frequency links:
Frequency,
Spectrum
Band
Transmitted (total) power
Noise spectral density
Receiver band sensitivity
Receiver allowed maximum input power in OFF condition
Gain
Radiation pattern
EIRP
Angular beam-width
Signal polarisation characteristics
Cross polarisation leakage
Attenuation
System noise temperature
Link budget
Modulation and coding of RF links:
Modulation (e.g. analogue, digital, FM, AM, Phase modulation: QPSK, 8PSK)
Channel encoding (e.g. block, convolutional)
Error correction (e.g. RS)
Scrambling (e.g. polynomial)
Interleaving
CADU structure (ASM, Codeblock)
Transfer and segmentation layer on space links:
Transfer frame format:
Transfer Frame size
Transfer frame header
Transfer frame trailer
Virtual Channel list
Master Channel List
Multiplexing
Transfer frame error control
Segmentation
Idle frame
Space packet layer:
Space Packets Format:
Packets size
Packet header
Data field header
APID list
Packet error control
Segmentation
Idle packet
Time formats specification
PUS Tailoring
Encryption
Encryption protocol management (e.g. keys management)
Commanding:
Use of BD/AD
Authentication
CCSDS packet acceptance and acknowledgement
Use of COP-1/FOP-1/FARM-1
Criticality
Bus link protocols:
Logical layer (message composition and format, time features of, response time, no-response time-out, word interface)
Synchronous Packet Transfer Layer (cycles, subframe time division for message transmission)
Transport of nominal CCSDS packets over busses
Discrete lines
Functional/Operational type of communication:
Commands (e.g. list, function)
Telemetry/housekeeping data (e.g. type, name, unit, identifier)
Synchronisation logic
Link control per type of communication (on/off)
Data interface data:
Type of exchange (e.g. physical media, network)
File format
File naming
Format validation (e.g. XML Schema)
Data encoding
Data encryption (e.g. type, key type, key length)
Frequency of transfer (e.g. daily, weekly, intermittent, 1 Hz)
Timeliness of the transfer
Transfer protocol (e.g. FTP, HTTP, TCP, RTSP)
Error handling
Clean-up policies (e.g. read and delete, read-only, delete and write)
Retention Time
Permission
Physical media (e.g. DVD, LTO4, Hexabyte, CD, Hard Disk)
Formatting of physical media (e.g. ISO, NTFS, Joliet, HFS+)
Labelling and indexing
Initiator of transfer

Control

Reference guidance and navigation frame and attitude convention
Local orbital frame (TLOF)

Operations

Schedule/process
Events
Operational scenarios (nominal, alternative, contingency)
Modes (e.g. nominal operational, standby, hibernations, safe)
Format of exchanged operation data (e.g. planning, instructions, requests, reports, acknowledgments, confirmations, alarms)
Actors (e.g. operator, operation engineer, operation manager)
Contact details (e.g. phone, e-mail, address)

Materials

Material compatibility / constraints
Materials outgassing
Material Humidity

Bibliography

ECSS-S-ST-00

ECSS system – Description, implementation and general requirements
